引用樓主龍海兒于2025-05-20 09:50發表的 S14-模擬量簡易處理 :
   Normal  0        7.8 磅  0  2    false  false  false    EN-US  ZH-CN  X-NONE                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    /* Style Definitions */ table.MsoNormalTable    {mso-style-name:普通表格;    mso-tstyle-rowband-size:0;    mso-tstyle-colband-size:0;    mso-style-noshow:yes;    mso-style-priority:99;    mso-style-parent:"";    mso-padding-alt:0cm 5.4pt 0cm 5.4pt;    mso-para-margin:0cm;    mso-para-margin-bottom:.0001pt;    mso-pagination:widow-orphan;    font-size:10.0pt;    font-family:"Times New Roman","serif";}

龍海兒11(同微博) 同《電氣外傳》微信公眾號

   Normal  0        7.8 磅  0  2    false  false  false    EN-US  ZH-CN  X-NONE                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    /* Style Definitions */ table.MsoNormalTable    {mso-style-name:普通表格;    mso-tstyle-rowband-size:0;    mso-tstyle-colband-size:0;    mso-style-noshow:yes;    mso-style-priority:99;    mso-style-parent:"";    mso-padding-alt:0cm 5.4pt 0cm 5.4pt;    mso-para-margin:0cm;    mso-para-margin-bottom:.0001pt;    mso-pagination:widow-orphan;    font-size:10.0pt;    font-family:"Times New Roman","serif";}

之前文章我們有分享過基本功能的電機功能塊，今天來做一下模擬量的轉換；其實儀表數據在工藝中起著很重要的作用，它如同自動化系統的眼睛耳朵和鼻子。那閑話少敘，直接搞起。

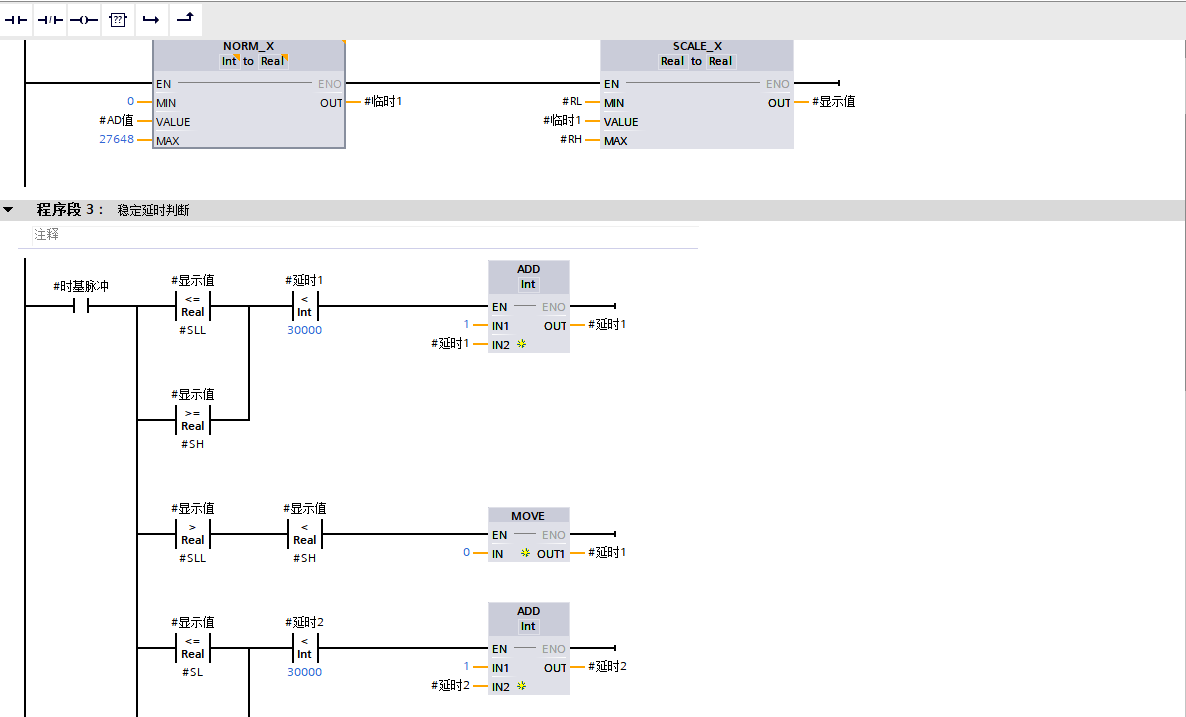

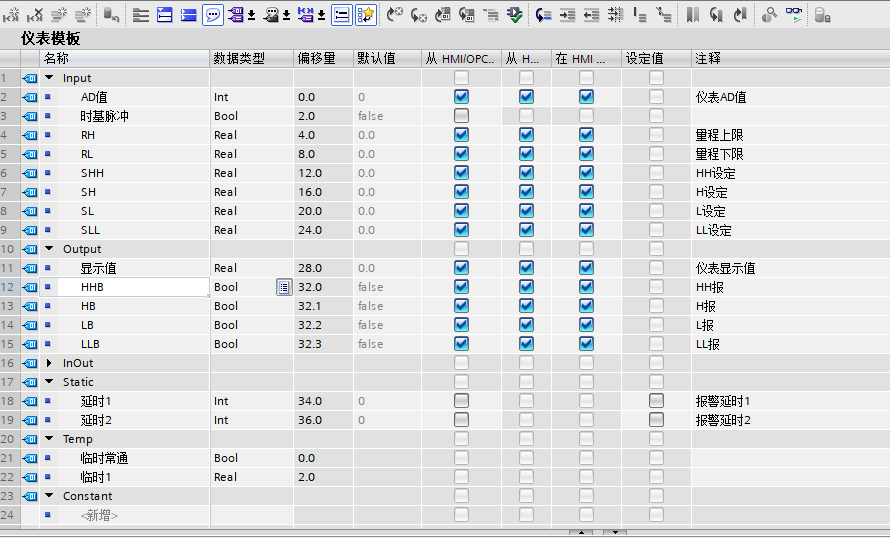

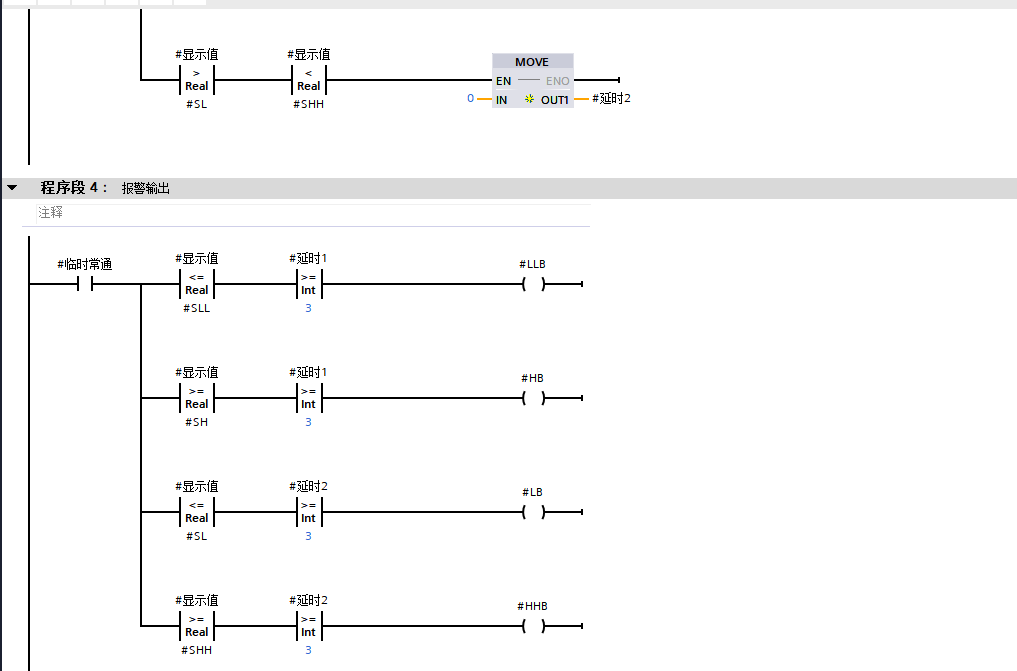

管腳上面預留基本的量程，和4個報警設定值。注意用input的話外面是可以寫定值的哦。輸出工程量顯示和對應4個報警。然后是常見的標準化和縮放。最后比較出來得出來對應4個報警值，可供程序上面應用。
如果報警需要加復位操作的話，線圈可以改成置位，然后加復位管腳來復位。
OK，寫道這里吧。功能簡單，思路清晰，可根據要求升級演化成各種版本。歡迎各位共同討論研究！

.......
